This bifilar master coil is designed for use in Bedini-style pulsed motor systems and similar experimental setups. It features two parallel windings (bifilar configuration) and is built for consistent performance in DIY motor and battery charging experiments.

The coil is wound with over 800 turns and mounted on a custom oval-shaped core assembly.

Design

Bifilar winding (two parallel conductors in a single coil)
Over 800 turns for use in pulsed motor configurations

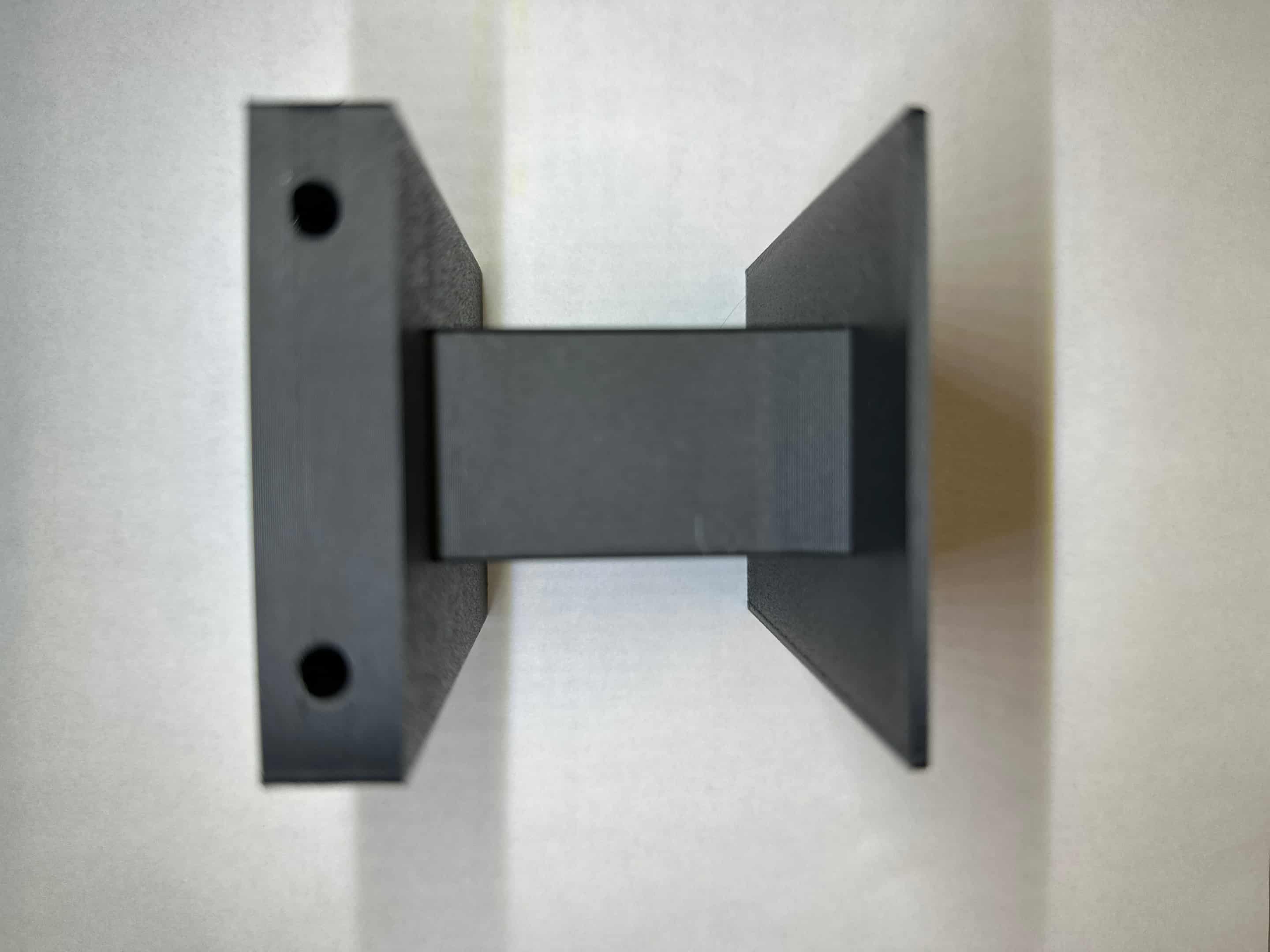

Oval core geometry for increased interaction area with the rotor path

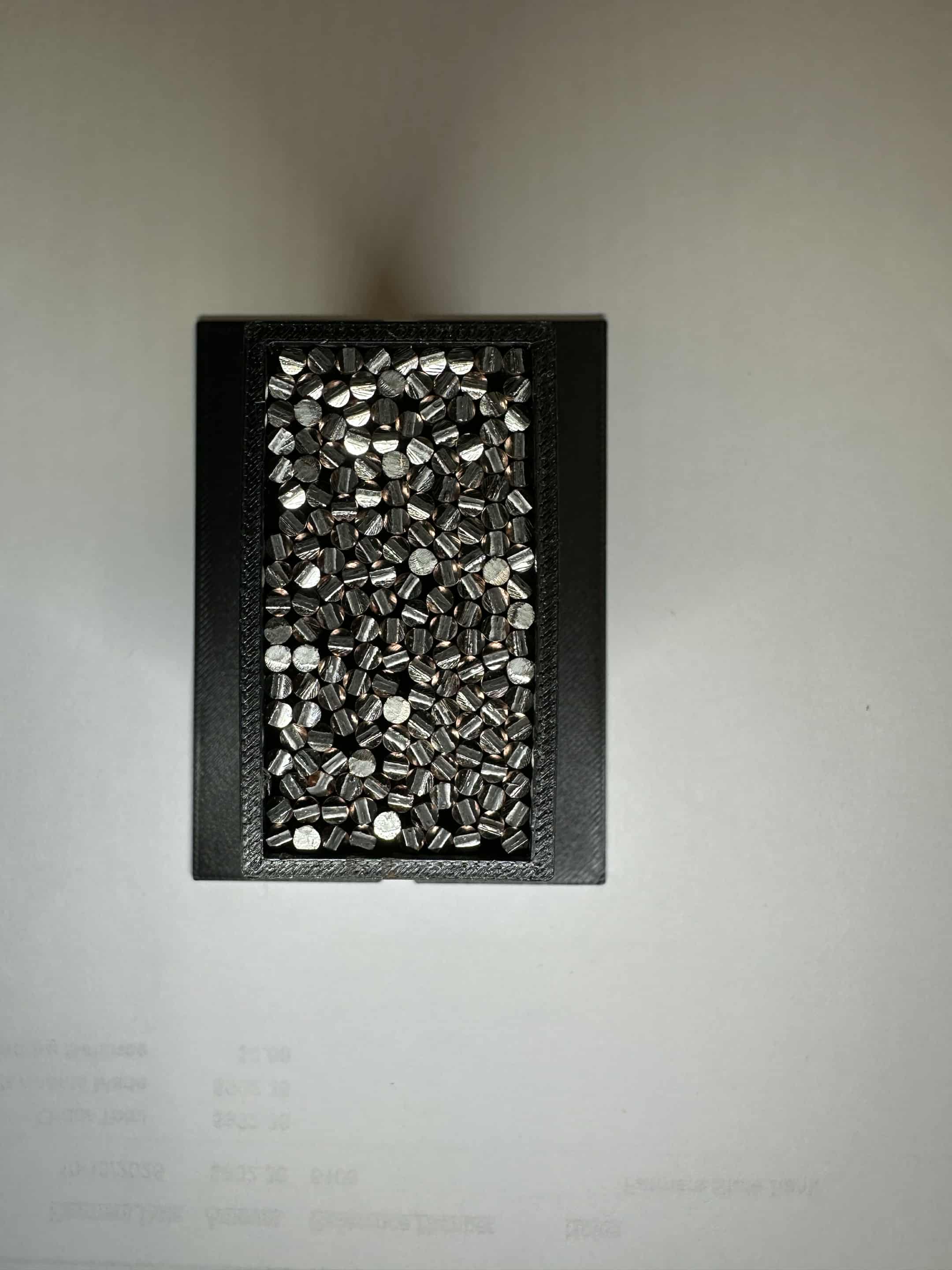

Core constructed from a combination of stainless steel and aluminum

Function

This coil is used in conjunction with a rotor and switching circuit to create pulsed electromagnetic interaction within the system.

It is commonly used by experimenters to:

build and test pulsed motor systems
explore coil and magnetic field interactions
configure battery charging setups
tune system behavior in DIY builds

⚠️ This is an experimental component. Performance and results will vary depending on system configuration, tuning, and operating conditions.

Compatibility

Designed for Bedini-style generator systems
Compatible with a wide range of DIY pulsed motor configurations

Important Notes

Not a standalone device
Requires integration with a rotor and circuit system
Intended for experimental, educational, and DIY use
Results depend on full system setup and tuning
